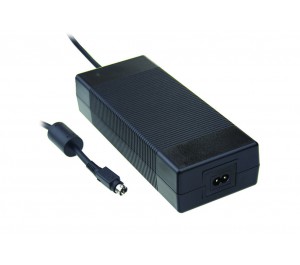

GSM220B12-R7B 180W 12V 15A Power Adapter

More Views

GSM220B12-R7B 180W 12V 15A Power Adapter

SKU: GSM220B12-R7B

Be the first to review this product


Availability: In stock

Quick Overview

GSM220B12-R7B is a 180 Watt, 12 Volt, 15 Amp, single output power adapter with 80 ~ 264VAC input voltage.



GSM220B12-R7B is a 180W 12V 15A single output medical power adapter with universal AC input, suitable for various medical electrical appliances with international medical safety certificates. The GSM220B12-R7B is a highly reliable and efficient (90%), class II (no Frame Ground) power adapter with ultra low leakage current <100μA and no load power consumption less than 0.15W

Write Your Own Review

You're reviewing: GSM220B12-R7B 180W 12V 15A Power Adapter

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 15A
Function Constant Voltage

GSM220B12-R7B Features

Universal AC input / Full range
2 pole AC inlet IEC320-C8
Medical safety approved (2 X MOPP between primary to secondary)
Suitable for BF application with appropriate system consideration
Low leakage current Energy efficiency level VI
Built-in active PFC function
Class II power (without earth pin)
Protections: Short Circuit / Overload / Over Voltage / Over Temperature
Fully enclosed plastic case
LED indicator for power on
100% full load burn-in test
3 years warranty

Voltage (V) 12V
Type AC-DC
Technology Switchmode
Power (W) 180W


Product Datasheets

GSM220B12-R7B 180W 12V 15A Power Adapter
