Details

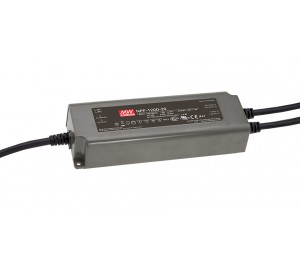

NPF-120D-54 is a 124.2W 54V 2.3A Single Output LED Lighting Power Supply with 90 ~ 305 input voltage. The interior is potted with silicone to improve heat dissipation which, along with cooling by free air convection, allows a working temperature of -40 ~ + 80°C. This LED power supply meets up to 5G of vibration testing, has an efficiency of up to 90% and is fully encapsulated with IP67 design making it suitable for decorative or architectural LED lighting, moving signs or even tunnel lighting. The D series also features built-in 3 in 1 dimming function
Additional Information
| Current (A) | 2A |
|---|---|
| Features | Universal AC / Full range (up to 305VAC) Built-in active PFC function Protections: Short Circuit / Over Current / Over Voltage / Over Temperature Cooling by free air convection Fully isolated plastic case Fully encapsulated with IP67 level Class II power unit, no FG Built-in 3 in 1 dimming function (0 ~ 10Vdc of PWM signal or resistance) Suitable for dry / damp / wey locations No load power consumption <0.5W 5 years warranty |
| Voltage (V) | 54V |
| Technology | Switchmode |
| Power (W) | 120W |
Downloads
Product Datasheets
-
NPF-120D Series Datasheet Size: (410.7 KB)
