LRS-150F-12 150W 12V 12.5A Single Output Enclosed Power Supply

More Views

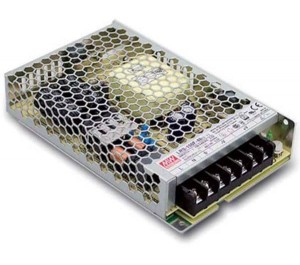

LRS-150F-12 150W 12V 12.5A Single Output Enclosed Power Supply

SKU: LRS-150F-12

Be the first to review this product

£19.58

Availability: In stock

Quick Overview

LRS-150F-12 from Mean Well is a 150 Watt, 12 Volt, 12.5 Amp, single output enclosed power supply with 85 - 264VAC input voltage.


Details

LRS-150F-12 is a 150W 12V 12.5A single output enclosed power supply with worldwide AC input.. The small and compact size of the LRS-150F-12 makes it an ideal power supply for a wide range of applications. With high efficiency up to 87.5% the unit is reliable and long lasting with an extremely low no load power consumption (less than 0.5W)

Write Your Own Review

You're reviewing: LRS-150F-12 150W 12V 12.5A Single Output Enclosed Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Quality
Service
Price
Value

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) N/A
Function Constant Voltage
Features
  • No load power consumption <0.5W for 150W
  • Ultra compact and 1U low profile
  • Compliance to IEC/EN60335-1 (PD3) and IEC/EN61558-1, -2-16 for household appliances (150W)
  • AC input selectable by switch (LRS-150F Universal AC input/ Full range)
  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • Withstand 5G vibration test
  • High operating temperature up to 70°
  • Protections: short circuit, overload, over voltage, over temperature
  • Cooling by free air convection 150W/200W- forced air cooling by built in DC fan (350W)
  • Operating altitude up to 5000 meters
  • LED indicator for power on
  • High efficiency, long life and high reliability
  • 100% full load burn-in test
  • Low cost
  • 3 years warranty
Applications
  • Industrial automation machinery
  • Industrial control systems
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances
Voltage (V) 12V
Type AC-DC
Technology Switchmode
FAQs What is an Enclosed Power Supply?

An enclosed power supply is typically perceived as the metal cased variety and the benefit of this is to stop components being exposed and in turn providing an extra measure of safety for service personnel of end user systems. PSOL’s enclosed power supply range offer flexible OEM power solutions from 5W to 3000W in single, dual, triple and quad outputs. Our enclosed power supplies have varied function, including full range input, active power factor correction, low no load power consumption, programmable outputs and even medical safety approval to MOOP levels; the majority of which have short circuit, over load and over voltage protections.

Advantages of using Enclosed Power Supply

High efficiency 68% to 90%

The transformer-isolated supplies have stable outputs independent of the input voltage

High power density

Power (W) 150W
