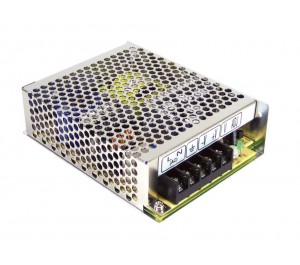

RS-75-15 75W 15V 5A Single Output Enclosed Power Supply

• No load power consumption <0.5W (RS-15-75)
• All using 105°C long life electrolytic capacitors
• Protections: short circuit, overload, over voltage, over temperature (RS-15)
• Meet EMS EN50082-2/EN61000-6-2, heavy industry level (35 ~ 150W)
• Withstand 300VAC surge input for 5 seconds
• High operating temperature up 70°
• Withstand 5G vibration test
• Miniature size
• Long life and reliability
• LED indicator for power on
• 100% full load burn-in test
• Suitable for critical applications
• 3 years warranty

What is an Enclosed Power Supply?

An enclosed power supply is typically perceived as the metal cased variety and the benefit of this is to stop components being exposed and in turn providing an extra measure of safety for service personnel of end user systems. PSOL’s enclosed power supply range offer flexible OEM power solutions from 5W to 3000W in single, dual, triple and quad outputs. Our enclosed power supplies have varied function, including full range input, active power factor correction, low no load power consumption, programmable outputs and even medical safety approval to MOOP levels; the majority of which have short circuit, over load and over voltage protections.

Advantages of using Enclosed Power Supply:

High efficiency 68% to 90%

The transformer-isolated supplies have stable outputs independent of the input voltage

High power density
