Details

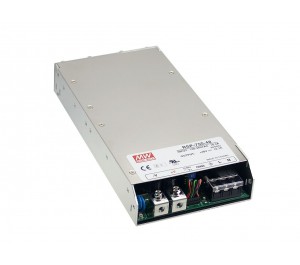

RSP-750-5 is a 500W 5V 100A enclosed power supply with 90 - 264VAC input voltage. With forced air cooling by a built-in DC fan and fan control speed. The programmable unit offers high efficiency up to 82% and built-in active PFC function. Various built in functions such as output programming, ON-OFF control and auxiliary power as well as standard features such as short circuit, overload, over voltage and over temp protections.
Additional Information
| Current (A) | 100A |
|---|---|
| Function | Constant Voltage, Power Factor Correction |
| Features | Universal AC input / Full range / AC input active surge current limiting < br> Built-in 12V/0.1A auxiliary power Built-in active surge current limiting Built-in active PFC function, PF>0.97 Protections: Short Circuit / Overload / Over Voltage / Over Temperature Fan alarm Output voltage can be trimmed between 40~110% of the rated output voltage Output OLP can be trimmed between 40~110% of the rated output current Forced air cooling by built-in DC fan 1U low profile 41mm DC OK signal Built-in remote ON-OFF control Built-in remote sense function 3 years warranty Dimensions: 250 X 127 X 41MM |
| Applications | Factory control or automation apparatus, Test and measurement instrument, Laser related machinery, Burn-in Facility, RF application |
| Voltage (V) | 5V |
| Technology | Switchmode |
| Power (W) | 500W |
Downloads
Product Datasheets
-
RSP-750 Series Datasheet Size: (187.48 KB)
