Welcome to Power Supplies Online!
Details

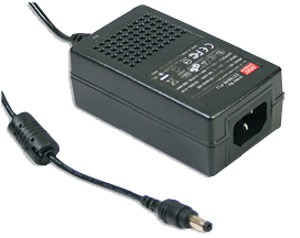

SPX-GS18A05 is an Universal input voltage 5V 3A external desktop power supply, for use as a KVM Extender AC Adapter. With IEC320 C14 inlet and 2.1 x 5.5mm tuning fork type DC connector this ac adapter offers 18 Watts of power and 5V, 3A single output. This Desktop adapter has UL, CUL, TUV, CE, FCC & PSE safety approvals and meets the requirements of Energy Dtar (CEC) Level IV & EISA 2007.
Additional Information
| Current (A) | 3A |
|---|---|
| Function | Constant Voltage |
| Features | Universal full range input No load power consumption <0.5W Class I power (with earth pin) Isolated 0V to ground Short circuit, over load & over voltage protection LED for power on UL, cUL, TUV, CE, FCC & PSE approvals Meets requirements of Energy Star (CEC) level IV & EISA 2007 Dimensions: 93 x 54 x 36mm |
| Applications | KVM Extender |
| Technology | Switchmode |
| Type | AC-DC |
| Voltage (V) | 5V |
| Specification | Output Voltage: 5Vdc Output Current: 3.0A Output Connector: 2.1 x 5.5mm tuning fork type Dimensions: 93 x 54 x 36mm |
| Works with: | 5V KVM Extender |
Downloads
Product Datasheets
-
GS18A Series Datasheet Size: (101.73 KB)
