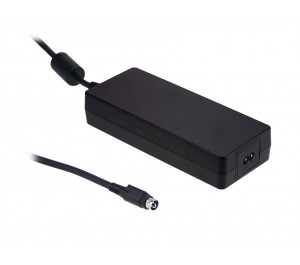

GSM160B20-R7B 160W 20V 8A Power Adapter

More Views

GSM160B20-R7B 160W 20V 8A Power Adapter

SKU: GSM160B20-R7B

Be the first to review this product

£58.67

Availability: In stock

Quick Overview

GSM160B20-R7B is a 160 Watt, 20 Volt, 8 Amp, single output power adapter with 80 ~ 264VAC input voltage.



Details

GSM160B20-R7B is a 160W 20V 8A single output medical power adapter with universal AC input, suitable for various medical electrical appliances with international medical safety certificates. The GSM160B20-R7B is a highly reliable and efficient (92.5%), class II (no Frame Ground) power adapter with ultra low leakage current <100μA and no load power consumption less than 0.15W

Write Your Own Review

You're reviewing: GSM160B20-R7B 160W 20V 8A Power Adapter

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Price
Value
Quality
Service

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 8A
Function Constant Voltage
Features

GSM160B20-R7B Features

  • Universal AC input / Full range
  • 2 pole AC inlet IEC320-C8
  • Medical safety approved (2 X MOPP between primary to secondary)
  • Suitable for BF application with appropriate system consideration
  • Low leakage current
  • No load power consumption
  • Energy efficiency level VI
  • Built-in active PFC function
  • Class II power (without earth pin)
  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature
  • Fully enclosed plastic case
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty
Voltage (V) 20V
Type AC-DC
Technology Switchmode
Power (W) 160W
