GSM40B05-P1J 25W 5V 5A Power Adapter

More Views

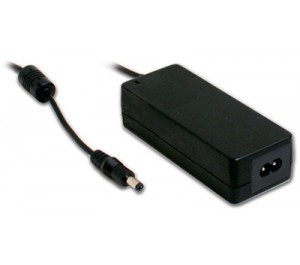

GSM40B05-P1J 25W 5V 5A Power Adapter

SKU: GSM40B05-P1J

Be the first to review this product

£19.62

Availability: In stock

Quick Overview

GSM40B05-P1J is a 25 Watt, 5 Volt, 5 Amp, single output power adapter with 80 ~ 264VAC input voltage.


Details

GSM40B05-P1J is a 25W 5V 5A single output medical power adapter with universal AC input / Full range, suitable for various medical electrical appliances with international medical safety certificates. The GSM40B05-P1J is a highly reliable and efficient (81%), class II (no Frame Ground) power adapter with ultra low leakage current <50μA and no load power consumption less than 0.1W

Write Your Own Review

You're reviewing: GSM40B05-P1J 25W 5V 5A Power Adapter

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Service
Price

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 5A
Function Constant Voltage
Features

GSM40B05-P1J Features

Universal AC input / Full range
2 pole AC inlet IEC320-C8
Medical safety approved (2 X MOPP between primary to secondary)
Suitable for BF application with appropriate system consideration
Low leakage current No load power consumption Energy efficiency level V (Except 5 ~ 9V for Level V)
Built-in active PDC function
Class II power (without earth pin)
Protections: Short Circuit / Overload / Over Voltage / Over Temperature
Fully enclosed plastic case
LED indicator for power on
100% full load burn-in test
Optional lock type DC plug
3 years warranty

Voltage (V) 5V
Type AC-DC
Technology Switchmode
Power (W) 25W
