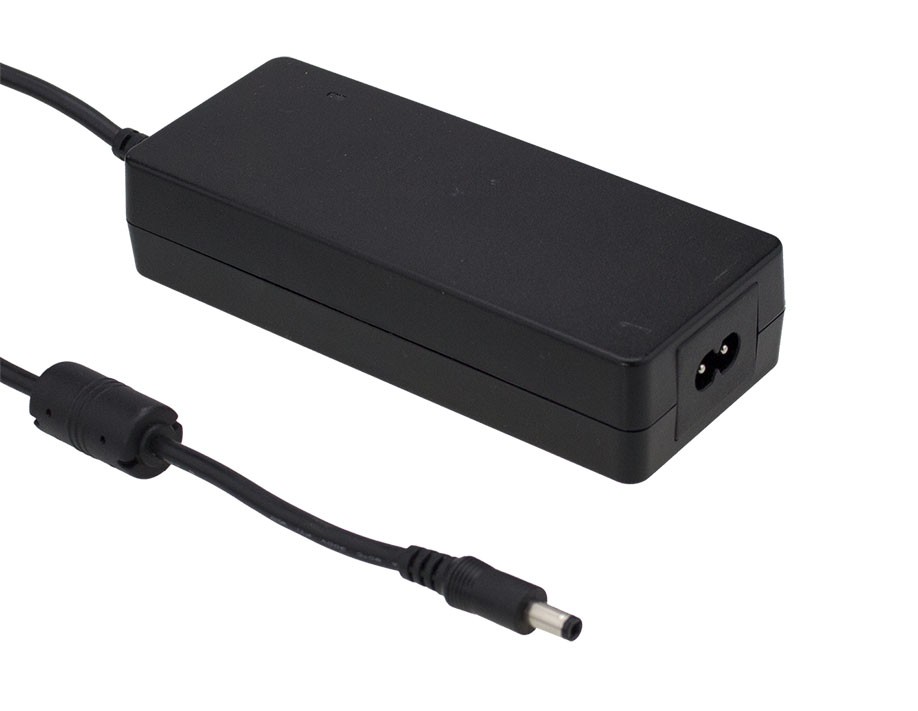

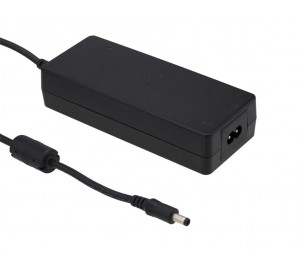

GSM90B48-P1M 90W 48V 1.87A Power Adapter

More Views

GSM90B48-P1M 90W 48V 1.87A Power Adapter

SKU: GSM90B48-P1M

Be the first to review this product

  • Buy 5 for £26.01 each and save 16%
  • Buy 10 for £25.15 each and save 19%
  • Buy 20 for £24.65 each and save 20%
£30.70

Availability: In stock

Quick Overview

GSM90B48-P1M from Mean Well is a 90 Watt, 48 Volt, 1.87 Amp, single output power adapter with 85 ~ 264VAC input voltage.



Details

GSM90B48-P1M is a 90W 48V 1.87A single output medical power adapter with full range AC input , suitable for various medical electrical appliances with international medical safety certificates. The GSM90B48-P1M is a highly reliable and efficient (91%), class II (no Frame Ground) power adapter with ultra low leakage current <50μA and no load power consumption less than 0.1W

Write Your Own Review

You're reviewing: GSM90B48-P1M 90W 48V 1.87A Power Adapter

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Service
Price

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 2A
Function Constant Voltage
Features

GSM90B48-P1M Features

Universal AC input / Full range
2 pole AC inlet IEC320-C8
Medical safety approved (2 x MOPP between primary to secondary)
Suitable for BF application with appropriate system consideration
Low leakage current No load power consumption Energy efficiency level VI
Class II power (without earth pin )
Protections: Short Circuit / Overload / Over Voltage / Over Temperature
Fully enclosed plastic case
LED indicator for power on
100% full load burn-in test
Optional lock type DC plug
3 years warranty

Voltage (V) 48V
Type AC-DC
Technology Switchmode
Power (W) 90W

Downloads

Product Datasheets

GSM90B48-P1M 90W 48V 1.87A Power Adapter
£30.70
