Details

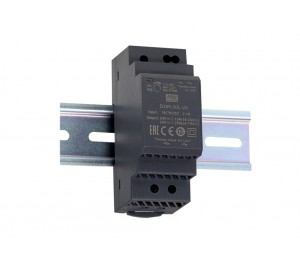

DDR-30G-12 is a 30W 12V 2.5A din rail DC-DC converter with 9 ~ 36VDC input voltage. At only 35mm wide, the DDR-30G-12 is an ultra slim DC to DC converter power supply option with 4:1 wide input range and adjustable DC output voltage (±10%)
Additional Information
| Current (A) | 2.5A |
|---|---|
| Function | DC-DC |
| Features | Width only 35mm (2SU) 4:1 ultra wide input range Wide working temperature range No minimum load required DC output adjustable (+/- 10%) Cooling by free air convection Can be installed on Din rail TS-35/7.5 or 15 Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Input under voltage protection 4KVdc I/O isolation |
| Voltage (V) | 12V |
| Type | DC-DC |
| Technology | Switchmode |
| Power (W) | 30W |
Downloads
Product Datasheets
-
DDR-30 Series Datasheet Size: (118.83 KB)
