Details

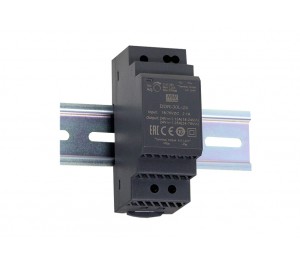

DDR-30L-5 is a 30W 5V 6A din rail DC-DC converter with 18 ~ 75VDC input voltage. At just 35mm wide the DDR-30L-5 is ultra slim, whilst the unit also offers cooling by free air convection for a wide working temperature range, no minimum load requirement and 4:1 wide input range.
Additional Information
| Current (A) | 6A |
|---|---|
| Function | DC-DC |
| Features | Width only 35mm (2SU) 4:1 ultra wide input range Wide working temperature range No minimum load required DC output adjustable (+/- 10%) Cooling by free air convection Can be installed on Din rail TS-35/7.5 or 15 Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Input under voltage protection 4KVdc I/O isolation |
| Voltage (V) | 5V |
| Type | DC-DC |
| Technology | Switchmode |
| Power (W) | 30W |
Downloads
Product Datasheets
-
DDR-30 Series Datasheet Size: (118.83 KB)
