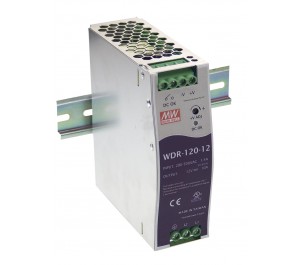

WDR-120-12 120W 12V 10A Industrial DIN RAIL Power Supply

More Views

WDR-120-12 120W 12V 10A Industrial DIN RAIL Power Supply

SKU: WDR-120-12

Be the first to review this product

£71.93

Availability: Out of stock

Quick Overview

WDR-120-12 from Mean Well is a 120 Watt, 12 Volt, 10 Amp, single output industrial din rail power supply with 180 ~ 550VAC input voltage.



Details

WDR-120-12 is a 120W 12V 10A single output industrial power supply with single and two phase wide input range 180 ~ 550VAC input voltage. The WDR-120-12 din rail unit features built-in constant current limiting circuit, compliance to EN61000-6-2 industrial immunity level, a high efficiency of 91% and cooling by free air convection. This industrial power supply unit is suitable for applications such as industrial control systems, factory automation and electro-mechanical applications.

Write Your Own Review

You're reviewing: WDR-120-12 120W 12V 10A Industrial DIN RAIL Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Service
Price
Value
Quality

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 10A
Function Constant Voltage
Features

WDR-120-12 Features

Single and two phase wide input range 180 ~ 550VAC
Protections: Short circuit / Overload / Over voltage / Over temp
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL508 (industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
Built-in DC OK relay contact
3 years warranty

Voltage (V) 12V
Technology Switchmode
Power (W) 120W

Downloads

Product Datasheets

WDR-120-12 120W 12V 10A Industrial DIN RAIL Power Supply
