WDR-240-24 240W 24V 10A Industrial DIN RAIL Power Supply

More Views

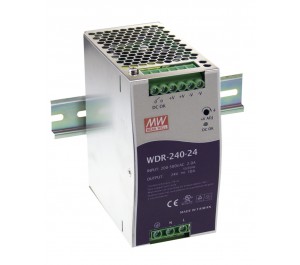

WDR-240-24 240W 24V 10A Industrial DIN RAIL Power Supply

SKU: WDR-240-24

Be the first to review this product

£120.30

Availability: In stock

Quick Overview

WDR-240-24 from Mean Well is a 240 Watt, 24 Volt, 10 Amp, single output industrial din rail power supply with wide range 180 ~ 550VAC input voltage.



Details

WDR-240-24 is a 240W 24V 10A industrial power supply with single and two phase wide input range 180 ~ 550VAC input voltage. The WDR-240-24 din rail unit features built-in active power factor correction function, compliance to EN61000-3-2, a high efficiency of 91% and cooling by free air convection. WDR-240-24 is an industrial power supply unit suitable for applications such as industrial control systems, factory automation and electro-mechanical applications.

Write Your Own Review

You're reviewing: WDR-240-24 240W 24V 10A Industrial DIN RAIL Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Price
Value
Quality
Service

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 10A
Function Constant Voltage, Power Factor Correction
Features

WDR-240-24 Features

Single and two phase wide input range 180 ~ 550VAC
Built-in active PFC circuit compliance to EN61000-3-2
High efficiency 91% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temp
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
UL508 (industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
Built-in DC OK relay contact
3 years warranty

Voltage (V) 24V
Technology Switchmode
Power (W) 240W

Downloads

Product Datasheets

WDR-240-24 240W 24V 10A Industrial DIN RAIL Power Supply
