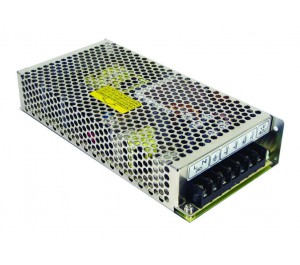

RS-150-5 130W 5V 26A Enclosed Switching Power Supply from Power Suppies Online

More Views

RS-150-5 130W 5V 26A Enclosed Switching Power Supply - RS-150-5

SKU: RS-150-5

Be the first to review this product

£21.21

Availability: In stock

Quick Overview

RS-150-5 130W 5V 26A Enclosed Switching Power Supply with worldwide AC input range selectable by switch.


Details

RS-150-5 130W 5V 26A enclosed type switching power supply offering worldwide input voltage (selectable via switch) and easy connect terminals for AC and DC power. With standard features such as short circuit, over load and over voltage protections this unit is suitable for application areas such as security systems, test and measurement equipment & lit displays.

Write Your Own Review

You're reviewing: RS-150-5 130W 5V 26A Enclosed Switching Power Supply - RS-150-5

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Service
Price

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Features
  • No load power consumption <0.5W (RS-15-75)
  • All using 105°C long life electrolytic capacitors
  • Protections: short circuit, overload, over voltage, over temperature (RS-15)
  • Meet EMS EN50082-2/EN61000-6-2, heavy industry level (35 ~ 150W)
  • UL, TUV, CE approvals
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • High operating temperature up 70°
  • Withstand 5G vibration test
  • Miniature size
  • High efficiency, long life and reliability
  • LED indicator for power on
  • 100% full load burn-in test
  • Suitable for critical applications
  • AC input selected by switch
  • Dimensions: 199 x 98 x 38mm
  • 3 years warranty
Functions N/A
Applications
  • Security systems
  • Communication systems
  • Lit Displays
  • Test & measurement equipment
Voltage 5V
Type AC-DC
Technology Switchmode
Power 130W
Current 26A
FAQs

What is an Enclosed Power Supply?

An enclosed power supply is typically perceived as the metal cased variety and the benefit of this is to stop components being exposed and in turn providing an extra measure of safety for service personnel of end user systems. PSOL’s enclosed power supply range offer flexible OEM power solutions from 5W to 3000W in single, dual, triple and quad outputs. Our enclosed power supplies have varied function, including full range input, active power factor correction, low no load power consumption, programmable outputs and even medical safety approval to MOOP levels; the majority of which have short circuit, over load and over voltage protections.

Advantages of using Enclosed Power Supply:

High efficiency 68% to 90%

The transformer-isolated supplies have stable outputs independent of the input voltage

High power density
