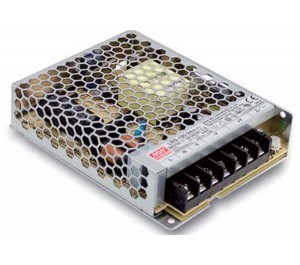

LRS-100-15 105W 15V 7A Single Output Enclosed Power Supply

More Views

LRS-100-15 105W 15V 7A Single Output Enclosed Power Supply

SKU: LRS-100-15

Be the first to review this product

£16.36

Availability: In stock

Quick Overview

LRS-100-15 from Mean Well is a 105 Watt, 15 Volt, 7 Amp, single output enclosed power supply with 88 - 264VAC input voltage.


Details

LRS-100-15 is a 105W 15V 7A single output enclosed power supply with universal AC input voltage. The metallic mesh casing allows economical heat dissipating and a working temperature range of -30°C through to + 70°C making the LRS-100-15 a long lasting and reliable power supply option.

Write Your Own Review

You're reviewing: LRS-100-15 105W 15V 7A Single Output Enclosed Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Service
Price
Value
Quality

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 7A
Function Constant Voltage
Features
  • No load power consumption <0.3W
  • Ultra compact and 1U low profile
  • Compliance to IEC/EN60335-1 (PD3) and IEC/EN61558-1, 2-16 for household appliances
  • Universal AC input/ Full range
  • Withstand 300VAC surge input for 5 seconds
  • Withstand 5G vibration test
  • High operating temperature up to 70°
  • Protections: short circuit/ overload, over voltage
  • Cooling by free air convection
  • Operating altitude up to 5000 meters
  • 100% full load burn-in test
  • High efficiency, long life and high reliability
  • Led indicator for power on
  • Low cost
  • 3 years warranty
Voltage (V) 15V
Type AC-DC
Technology Switchmode
FAQs What is an Enclosed Power Supply?

An enclosed power supply is typically perceived as the metal cased variety and the benefit of this is to stop components being exposed and in turn providing an extra measure of safety for service personnel of end user systems. PSOL’s enclosed power supply range offer flexible OEM power solutions from 5W to 3000W in single, dual, triple and quad outputs. Our enclosed power supplies have varied function, including full range input, active power factor correction, low no load power consumption, programmable outputs and even medical safety approval to MOOP levels; the majority of which have short circuit, over load and over voltage protections.

Advantages of using Enclosed Power Supply

High efficiency 68% to 90%

The transformer-isolated supplies have stable outputs independent of the input voltage

High power density

Power (W) 105W

Downloads

Product Datasheets

LRS-100-15 105W 15V 7A Single Output Enclosed Power Supply
