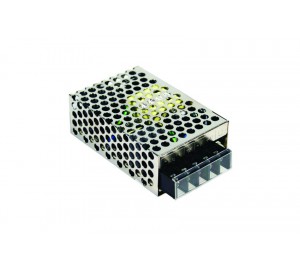

RS-25-48 27.36W 48V 0.87A Single Output Enclosed Power Supply

RS-25-48 Features

Universal AC input / Full range
No load power consumption <0.5W (RS-15-75)
All using 105°C long life electrolytic capacitors
Protections: short circuit, overload, over voltage, over temperature (RS-15)
Meet EMS EN50082-2/EN61000-6-2, heavy industry level (35 ~ 150W)
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
High operating temperature up 70°
Withstand 5G vibration test
Miniature size
High efficiency, long life and high reliability
LED indicator for power on
100% full load burn-in test
Suitable for critical applications
3 years warranty

What is an Enclosed Power Supply?

An enclosed power supply is typically perceived as the metal cased variety and the benefit of this is to stop components being exposed and in turn providing an extra measure of safety for service personnel of end user systems. PSOL’s enclosed power supply range offer flexible OEM power solutions from 5W to 3000W in single, dual, triple and quad outputs. Our enclosed power supplies have varied function, including full range input, active power factor correction, low no load power consumption, programmable outputs and even medical safety approval to MOOP levels; the majority of which have short circuit, over load and over voltage protections.
Advantages of using Enclosed Power Supply:

High efficiency 68% to 90%

The transformer-isolated supplies have stable outputs independent of the input voltage

High power density
