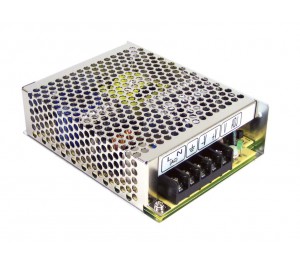

RS-75-24 76.8W 24V 3.2A Single Output Enclosed Power Supply

More Views

RS-75-24 76.8W 24V 3.2A Single Output Enclosed Power Supply

SKU: RS-75-24

Be the first to review this product


Availability: In stock

Quick Overview

RS-75-24 from Mean Well is a 76.8 Watt, 24 Volt, 3.2 Amp, single output enclosed power supply with 88 - 264VAC input voltage.


RS-75-24 is a 76.8W 24V 3.2A single output enclosed power supply with universal AC input voltage. Cooling by free air convection coupled with a metal housing designed for heat dissipation allows the RS-50-15 to operate under temperatures ranging from -25°C to +70°C. This 24 volt power supply is designed to withstand 5G vibration testing and 300VAC surge input for 5 seconds, has undergone 100% full load burn-in testing and has a 265,000 hour average long lifespan making the RS-75-24 extremely reliable and suitable for a wide range of applications.

Write Your Own Review

You're reviewing: RS-75-24 76.8W 24V 3.2A Single Output Enclosed Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 3A
Function Constant Voltage

RS-75-24 Features

  • No load power consumption <0.5W (RS-15-75)
  • All using 105°C long life electrolytic capacitors
  • Protections: short circuit, overload, over voltage, over temperature (RS-15)
  • Meet EMS EN50082-2/EN61000-6-2, heavy industry level (35 ~ 150W)
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up 70°
  • Withstand 5G vibration test
  • Miniature size
  • Long life and reliability
  • LED indicator for power on
  • 100% full load burn-in test
  • Suitable for critical applications
  • 3 years warranty
Voltage (V) 24V
Type AC-DC
Technology Switchmode

What is an Enclosed Power Supply?

An enclosed power supply is typically perceived as the metal cased variety and the benefit of this is to stop components being exposed and in turn providing an extra measure of safety for service personnel of end user systems. PSOL’s enclosed power supply range offer flexible OEM power solutions from 5W to 3000W in single, dual, triple and quad outputs. Our enclosed power supplies have varied function, including full range input, active power factor correction, low no load power consumption, programmable outputs and even medical safety approval to MOOP levels; the majority of which have short circuit, over load and over voltage protections.

Advantages of using Enclosed Power Supply:

High efficiency 68% to 90%

The transformer-isolated supplies have stable outputs independent of the input voltage

High power density

Power (W) 80W


Product Datasheets

RS-75-24 76.8W 24V 3.2A Single Output Enclosed Power Supply
