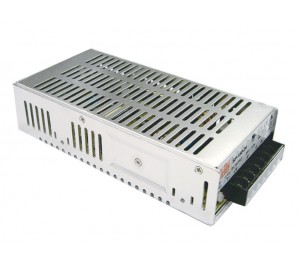

SP-150-3.3 is a 99W 3.3V 30A enclosed power supply with 85 ~ 264VAC input voltage. This enclosed power supply offers a uniquely design metal housing to enhance cooling and heat dissipation, improving the product efficiency and life span as well as allowing an operating temperature range of -10°C to +55°C
Product Tags
Use spaces to separate tags. Use single quotes (') for phrases.
Additional Information
Current (A)
30A
Function
Constant Voltage
Features
Universal AC input / Full range
Built-in active PFC function, PF > 0.93
Protections: Short circuit / Overload / Over voltage / Over temp
Built-in constant current limiting circuit
Remote ON-OFF control (Optional)
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC: 67KHz PWM: 134KHz
