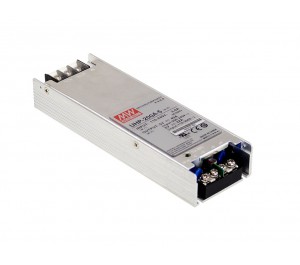

The UHP-200R-5 is a 200W 40A 5V slim type power supply unit with redundant function, built-in active power factor correction and a slim design with a low profile. Operating from the full range 90 - 264VAC input, the UHP-200R-5 is capable of withstanding a 300VAC surge on the input for up to 5 seconds and is designed for application in industries such as industrial automation, LED display and mechanical equipment
Product Tags
Use spaces to separate tags. Use single quotes (') for phrases.
Additional Information
Current (A)
40A
Function
Constant Voltage, Redundant Power Supply, Power Factor Correction
Features
Slim and low profile (26mm)
Fanless design, 200W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
150% peak load capability (100ms)
DC OK active signal and redundant function
-30°C - +70°C working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
