Details

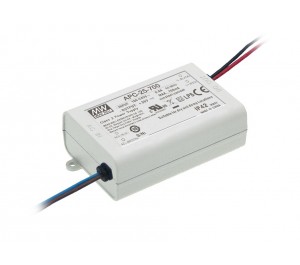

APC-25-500 is a 25.2W 15 ~ 50V 500mA Single Output LED Lighting Power Supply with universal AC input / full range. It is a small and compact, constant current design power supply unit, with cooling by free air convection and built in protections including short circuit, over voltage and the ability to withstand 300VAC surge input for 5 seconds. The IP42 rating means this unit is suitable for applications including LED lighting and moving signs.
Additional Information
| Current (A) | 500mA |
|---|---|
| Function | Constant Current |
| Features | Constant current design Universal AC input / Full range Withstand 300VAC surge input for 5 seconds Protections: Short Circuit / Over Voltage Fully isolated plastic case Small and compact size Cooling by free air convection IP42 design Suitable for LED lighting and moving sign applications 100% full load burn-in test Low cost / High reliability 2 years warranty |
| Type | AC-DC |
| Technology | Switchmode |
Downloads
Product Datasheets
-
APC-25 Series Datasheet Size: (341.39 KB)
