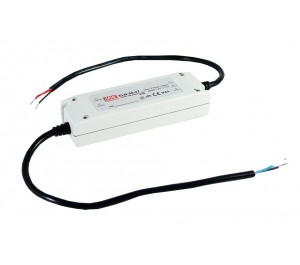

ELN-30-15 is a 30W 15V 2A switching power supply unit for LED systems. The ELN-30-15 is a limited power supply (LPS) class II power unit (no frame ground) with constant current limiting circuit and IP64 ingress protection.
Additional Information
| Current (A) | 2A |
|---|---|
| Function | N/A |
| Features | Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Cooling by free air convection Built-in constant current limiting circuit with adjustable OCP level Optional dimming function: 1.1 ~ 10VDC (D type) or PWM (P type) controlled Fully isolated plastic case with IP64 level Class II power, no frame ground Class 2 power unit Pass LPS Suitable for LED lighting and moving sign applications 100% full load burn-in test Low cost 2 years warranty |
| Voltage (V) | 15V |
| Type | AC-DC |
| Technology | Switchmode |
| Power (W) | 30W |
Downloads
Product Datasheets
-
ELN-30 Series Datasheet Size: (69.97 KB)
