Details

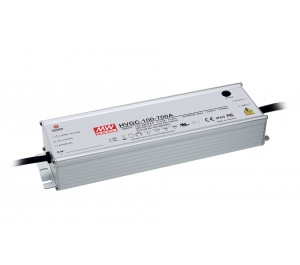

HVGC-100-350A is a 99.75W 29 ~ 285V 350mA Single Output LED Lighting Power Supply with 180 ~ 528VAC input voltage. With built-in active power factor correction function and constant current design, this Mean Well LED power supply is ideal for LED lighting and street street lighting applications thanks to the IP65 rated design. Using cooling by free air convection the unit can operate at -40 ~ +70°C. It also has compliance to worldwide safety regulations for lighting. Function option: Constant current level adjustable through internal potentiometer
Additional Information
| Current (A) | 700mA |
|---|---|
| Function | Constant Current |
| Features | Constant current design Wide input range 180 ~ 528VAC Built-in active PFC function High efficiency up to 91% Protections: Short circuit / Over voltage / Over temperature Cooling by free air convection OCP point adjustable through internal potentiometer IP65 design for indoor or outdoor installations 3 in 1 dimming function Suitable for LED lighting and street lighting applications Compliance to worldwide safety regulations for lighting Suitable for dry / damp / wet locations 5 years warranty |
| Technology | Switchmode |
Downloads
Product Datasheets
-
HVGC-100 Series Datasheet Size: (237.61 KB)
