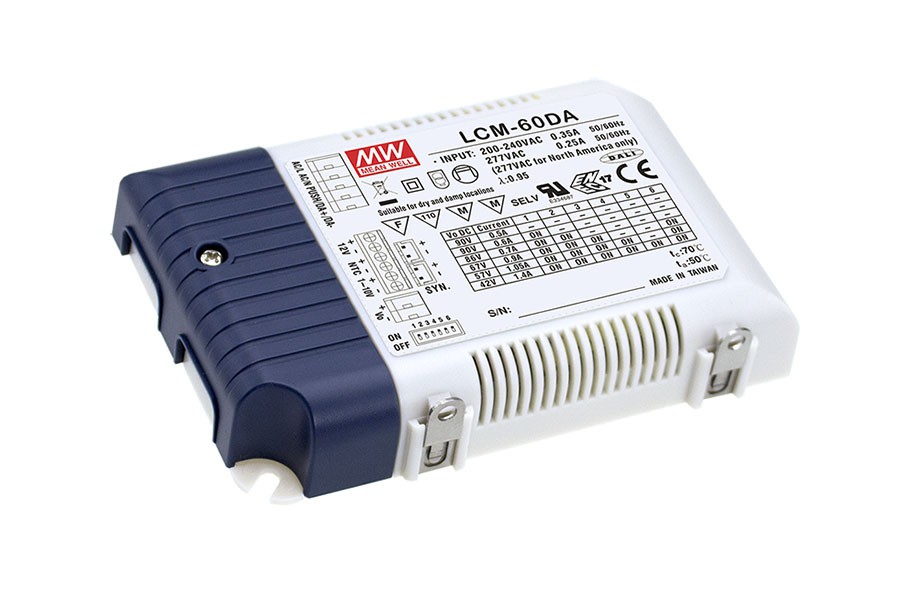

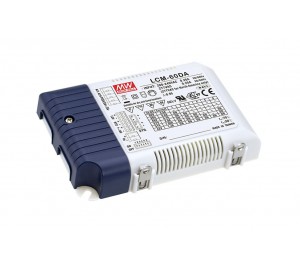

LCM-60DA 60.3W 2 ~ 90V 500 ~ 1400mA  LED Lighting Power Supply

More Views

LCM-60DA 60.3W Multiple Output Constant Current LED Lighting Power Supply

SKU: LCM-60DA

Be the first to review this product

  • Buy 5 for £30.33 each and save 10%
  • Buy 10 for £26.68 each and save 21%
£33.69

Availability: In stock

Quick Overview

LCM-60DA is a 60.3 Watt LED driver with DALI push dimming and constant current mode output with multiple levels selectable through a built-in dip switch.



Details

LCM-60DA is a 60.3W multiple output constant current LED driver offering from 500mA ~ 1400mA. With an input voltage of 180 ~ 295VAC, the LCM-60DA can provide six selectable constant current output options: 500mA, 600mA, 700mA, 900mA, 1050mA and 1400mA. This Mean Well LED Power Supply is a Class II (no Frame Ground) power unit with built-in active PFC function, output current level is selectable by DIP Switch and no load power consumption < 0.5W. As well as built-in DALI interface and push dimming function.

Write Your Own Review

You're reviewing: LCM-60DA 60.3W Multiple Output Constant Current LED Lighting Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Price
Value
Quality
Service

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 1400mA
Function Constant Current, DALI Control Technology
Features Output Current Level by DIP S.W
180 ~ 295VAC input only
Built-in active PFC function
Protections: Short Circuit / Over Voltage / Over Temperature
Cooling by free air convection
Fully isolated plastic case
Class II power unit, no FG
Built-in DALI interface and push dimming function
Built-in 12V/50mA auxiliary output (Optional, Model No: LCM-60DA-AUX) IP20 design
Logarithm or linear dimming curve selectable
Temperature compensation function by external NTC
No load power consumption <0.5W
Power supplies synchronization function up to 10 units
Suitable for indoor LED lighting applications
3 years warranty
Technology Switchmode
Power (W) 60W
