Details

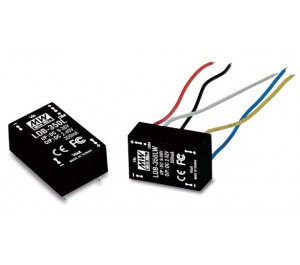

LDB-300LW is a 2 ~ 40VDC 300mA Single Output LED Driver with 9 ~ 36VDC input voltage.
Additional Information
| Current (A) | N/A |
|---|---|
| Function | Dimmable |
| Features | DC/DC buck-boost converter Constant current output: 300mA to 600 mA Wide input voltage: 9 ~ 36VDC Wide output LED string voltage: 2 ~ 40VDC High efficiency up to 91% Built-in EMI filter, comply with EN55015 and FCC part15 without additional input filter and capacitors Built-in PWM and remote ON/OFF control Protections: Short circuit / Over temperature Cooling by free air convection Fully encapsulated with IP67 level Compact size Low cost, high reliability Suitable for driving illumination LED 3 years warranty |
| Technology | Switchmode |
| Power (W) | N/A |
Downloads
Product Datasheets
-
LDB Series Datasheet Size: (382.24 KB)
