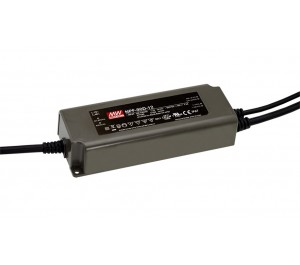

NPF-90D-24 is a 90W 24V 3.75A Single Output LED Lighting Power Supply with universal AC input voltage. With built-in active PFC function, the interior of this Mean Well power supply is potted with silicone to improve heat dissipation which, along with cooling by free air convection, allows a working temperature of -40 ~ + 70°C. This LED power supply meets up to 5G of vibration testing, has an efficiency of up to 90% and is fully encapsulated with IP67 design making it suitable for decorative or architectural LED lighting, moving signs or even tunnel lighting. The D series also features built-in 3 in 1 dimming function
Additional Information
| Current (A) | 3.5A |
|---|---|
| Function | Dimmable |
| Features | Universal AC input / Full range (up to 305VAC) Built-in active PFC function Protections: Short Circuit / Over Current / Over Voltage / Over Temperature Cooling by free air convection Fully isolated plastic case Fully encapsulated with IP67 level Class II power unit, no FG Built-in 3 in 1 dimming function (0~10Vdc or PWM signal or resistance) Suitable for dry / damp / wet locations No load power consumption <0.5W 5 years warranty |
| Voltage (V) | 24V |
| Technology | Switchmode |
| Power (W) | 90W |
Downloads
Product Datasheets
-
NPF-90D Series Datasheet Size: (147.19 KB)
