Details

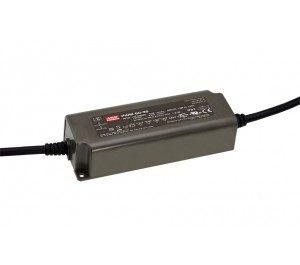

PWM-60-36 is a 60.12W 36V 1.67A Single Output LED Lighting Power Supply with 90 ~ 305VAC input voltage. This waterproof IP67 rated power supply transmits constant voltage PWM style output, has a dimming range from 0 ~ 100% with built-in 3 in 1 dimming function that simplifies the brightness adjustment to achieve energy conservation and a no load power consumption < 0.5W
Additional Information
| Function | Constant Voltage, Dimmable |
|---|---|
| Features | Universal AC input / Full range (up to 305VAC) Built-in active PFC function Constant voltage PWM style output Dimming range:0~100% Protections: Short Circuit / Overload / Over Voltage / Over Temperature Class II power unit, no FG Class 2 power unit Suitable for dry / damp / wet locations No load power consumption <0.5W 5 years warranty |
| Voltage (V) | 36V |
| Technology | Switchmode |
Downloads
Product Datasheets
-
PWM-60 Series Datasheet Size: (198.41 KB)
