MPQ-200B 200W 1 ~ 4 Output Medical Type Open Frame Power Supply

More Views

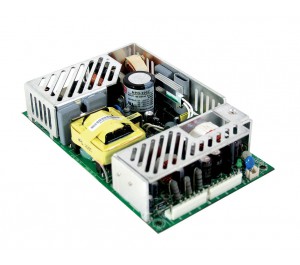

MPQ-200B 200W Quadruple Output Medical Type Open Frame Power Supply

SKU: MPQ-200B

Be the first to review this product

£107.28

Availability: In stock

Quick Overview

MPQ-200B is a 200 Watt, quadruple output medical type open frame power supply with 90 ~ 264VAC input voltage.



Details

MPQ-200B is a 200W quadruple output medical type open frame power supply with 90 ~ 264VAC input voltage. The MPQ-200 has a low leakage current < 180mA, built-in remote ON-OFF control and ANSI/AAMI ES60601-1 medical safety approvals

Write Your Own Review

You're reviewing: MPQ-200B 200W Quadruple Output Medical Type Open Frame Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Quality
Service
Price
Value

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Function Constant Voltage
Features Universal AC input / Full range
low leakage current < 180mA
Protections: Short circuit / Overload / Over voltage / Over temp
Cooling by free air convection for 140W and forced air convection for 200W
ANSI/AAMI ES60601-1 medical safety approval
With power good and fail signal output
Built-in remote ON-OFF control
Built-in remote sense function
Fixed switching frequency at 100KHz
3 years warranty
Technology Switchmode
Power (W) 200W
