Details

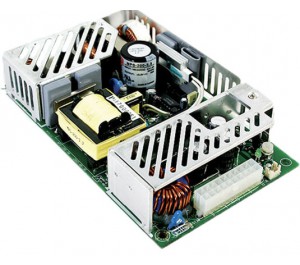

MPS-200-48-C is a 200W 48V 4.2A single output medical type open frame power supply with 90 ~ 264VAC input voltage. With ANSI/AAMI ES60601-1 medical safety approval the MPS-200-48-C offers high efficiency, low leakage current and built-in protections.
Additional Information
| Current (A) | 4A |
|---|---|
| Function | Constant Voltage |
| Features | Universal AC input / Full range low leakage current < 180mA Protections: Short circuit / Overload / Over voltage / Over temp Cooling by free air convection for 140W and forced air convection for 200W ANSI/AAMI ES60601-1 medical safety approval With power good and fail signal output Built-in remote ON-OFF control Built-in remote sense function Fixed switching frequency at 100KHz 3 years warranty |
| Voltage (V) | 48V |
| Technology | Switchmode |
| Power (W) | 200W |
Downloads
Product Datasheets
-
MPS-200 Series Datasheet Size: (496.21 KB)
