Details

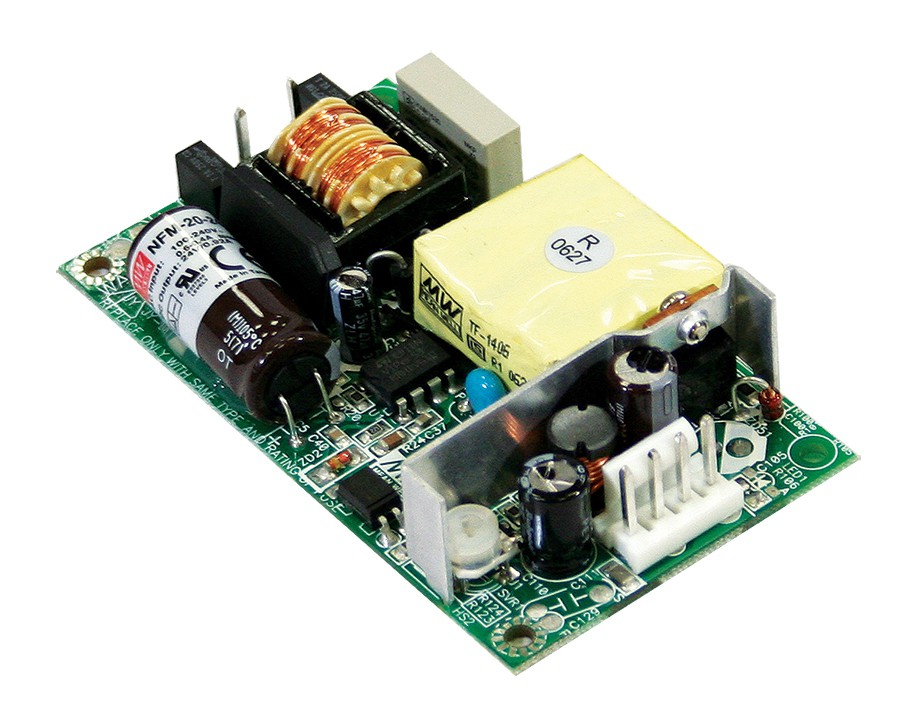

NFM-20-24 is a 22.08W 24V 0.92A switching open frame power supply with universal AC input. The NFM-20-24 has an ultra compact miniature size, a no load power consumption < 0.75W and features medical safety approvals
Additional Information
| Current (A) | <1A |
|---|---|
| Function | N/A |
| Features | Universal AC input / Full range Protections: Short circuit / Overload / Over voltage / Over temp Ultra-miniature size, light weight Cooling by free air convection Isolation Class II ANSI/AAMI ES60601-1 / IEC60601-1 / EN60601-1 Medical safety approved No load power consumption < 0.75W 100% full load burn-in test Optional on-board type version available Fixed switching frequency at 90KHz High reliability |
| Voltage (V) | 24V |
| Technology | Switchmode |
| Power (W) | 20W |
Downloads
Product Datasheets
-
NFM-20 Series Datasheet Size: (689.35 KB)
