Details

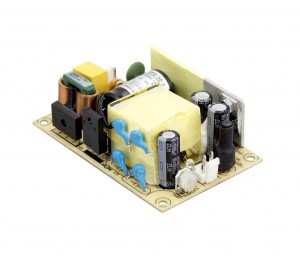

RPS-30-12 is a 30W 12V 2.5A medical type power supply with 80 ~ 264VAC input voltage. The 3" x 2" miniature size of the RPS-30-12 makes it ideal for medical applications as well as 2 x MOPP medical approval, high efficiency up to 88% and cooling by free air convection
Additional Information
| Current (A) | 2.5A |
|---|---|
| Features | "3 x "2 miniature size Universal AC input / Full range Class II (without frame ground) installations Medical safety approved (2x MOPP between primary and secondary) Suitable for BF application with appropriate system consideration Low leakage current <100ma No load power consumption <0.1W High efficiency up to 91% For 1U applications Protections: Short circuit / Overload / Over voltage Cooling by free air convection -30 ~ +70C wide Operating temperature range Operating altitude up to 4,000 meters LED indicator for power on 3 years warranty |
| Voltage (V) | 12V |
| Technology | Switchmode |
| Power (W) | 30W |
Downloads
Product Datasheets
-
RPS-30 Series Datasheet Size: (138.49 KB)
