Details

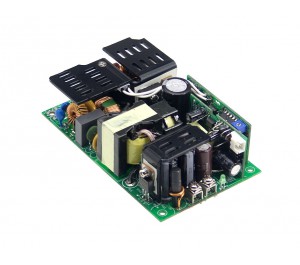

RPS-300-15 is a 300W 15V 20A green medical power supply with 90 ~ 264VAC input voltage. With a 5" x 3" miniature size the RPS-300-15 includes built-in power factor correction, an ultra low leakage current, low no load power consumption and medically approvals.
Additional Information
| Current (A) | 20A |
|---|---|
| Function | Constant Voltage, Power Factor Correction |
| Features | "5 x "3 compact size Universal AC input / Full range Built-in active PFC function Medical safety approved (2x MOPP between primary and secondary) Suitable for BF application with appropriate system consideration Low leakage current <200ma Low no load power consumption < 0.5W by PS-ON control High efficiency up to 93% Protections: Short circuit / Overload / Over voltage / Over temp Cooling by free air convection for 200W and 300W with 20.5CFM forced air Built-in 12V/0.5A fan supply Standby 5V @ 1A with fan, 0.6A without fan LED indicator for power on 3 years warranty |
| Voltage (V) | 15V |
| Technology | Switchmode |
| Power (W) | 300W |
Downloads
Product Datasheets
-
RPS-300 Series Datasheet Size: (234.41 KB)
