Details

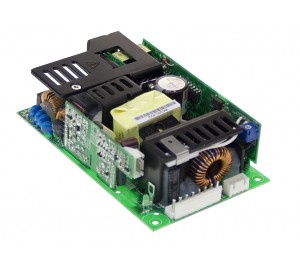

RPSG-160-12 is a 159.8W 12V 12.9A medical grade power supply with 90 ~ 264VAC input voltage. With a low no load power consumption under 0.5W by PS-ON control and EMI class B for class I configuration the RPSG-160-12 is an efficient and reliable power supply option.
Additional Information
| Current (A) | 12.5A |
|---|---|
| Features | 5" x 3" compact size Medical safety approved (2 x MOPP) according to ANSI / AAMI ES60601-1 and IEC / EN60601-1 Suitable for BF application with approriate system consideration 110W convection, 160W force air EMI class B for class I configuration No load power consumption under 0.5W by PS-ON control (G model) 5Vdc standby output, Power Good, Power Fail; Remote sense for 5 ~ 15V Protections: Short circuit / Overload / Over voltage / Over temperature 3 years warranty |
| Voltage (V) | 12V |
| Technology | Switchmode |
| Power (W) | 160W |
Downloads
Product Datasheets
-
RPSG-160 Series Datasheet Size: (616.54 KB)
