Details

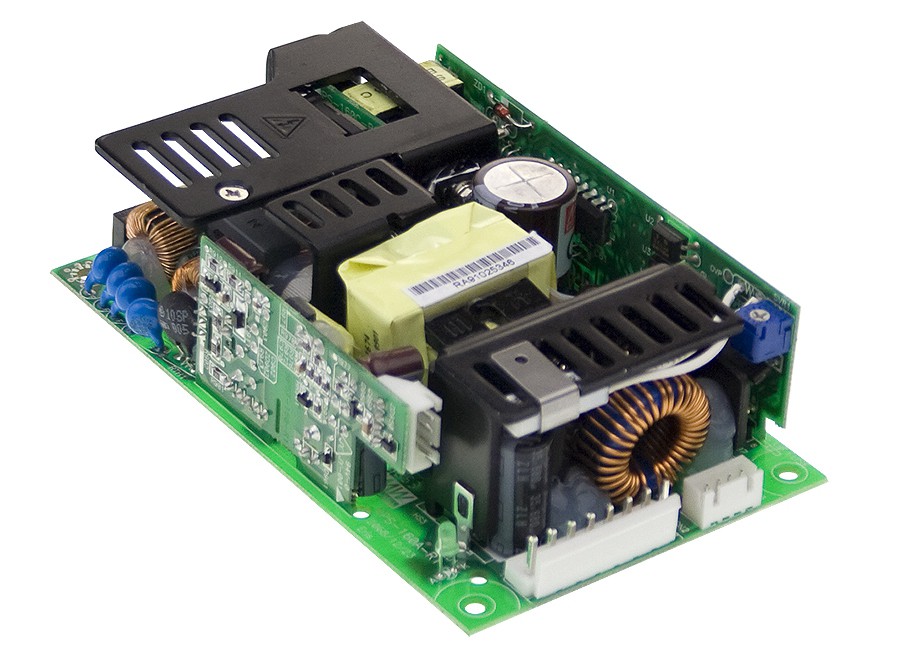

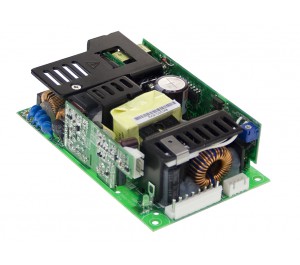

RPT-160D is a 147.8W triple output medical grade power supply with universal AC input voltage. The RPT-160D is suitable for body floating applications with appropriate system consideration due to it's medical approvals (means of patient protection) and extremely low leakage current.
Additional Information
| Current (A) | 11A |
|---|---|
| Function | Constant Voltage, Power Factor Correction |
| Features | 5" x 3" compact size Medical safety approved (2 x MOPP) according to ANSI / AAMI ES60601-1 and IEC / EN60601-1 Suitable for BF application with approriate system consideration 100W convection, 145W force air EMI class B for Class I configuration No load power consumption under 0.75W by PS-ON control (G model) Extremely low leakage current 5Vdc standby output, Power Good, Power Fail Protections: Short circuit / Overload / Over voltage / Over temperature Lifetime > 85,000 hours 3 years warranty |
| Technology | Switchmode |
| Power (W) | 145W |
Downloads
Product Datasheets
-
RPT-160 Series Datasheet Size: (867.95 KB)
