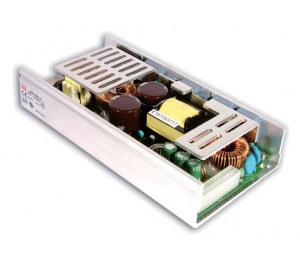

USP-225-12 is a 224.4W 12V 18.7A Single Output U Channel Power Supply with universal AC input / Full range, built-in active PFC circuit compliance to EN61000-3-2 and active AC surge current limiting. This power supply has a high power density of 4.7w/in³ and using both cooling by free air convection for 150W and forced air convection for 225W allows a operating temperature of -20 ~ +65°C
Additional Information
| Current (A) | N/A |
|---|---|
| Function | Constant Voltage, Power Factor Correction |
| Features | Universal AC input / Full range Built-in active PFC circuit compliance to EN61000-3-2 Protections: Short Circuit / Overload / Over Voltage/ Over Temperature Free air convection for 150W and forced air convection for 225W Active AC surge current limiting U-bracket low profile: 38mm 3 years warranty Dimensions: 202 X 101.5 X 38MM |
| Voltage (V) | 12V |
| Technology | Switchmode |
| Power (W) | N/A |
Downloads
Product Datasheets
-
USP-225 Datasheet Size: (82.92 KB)
