Details

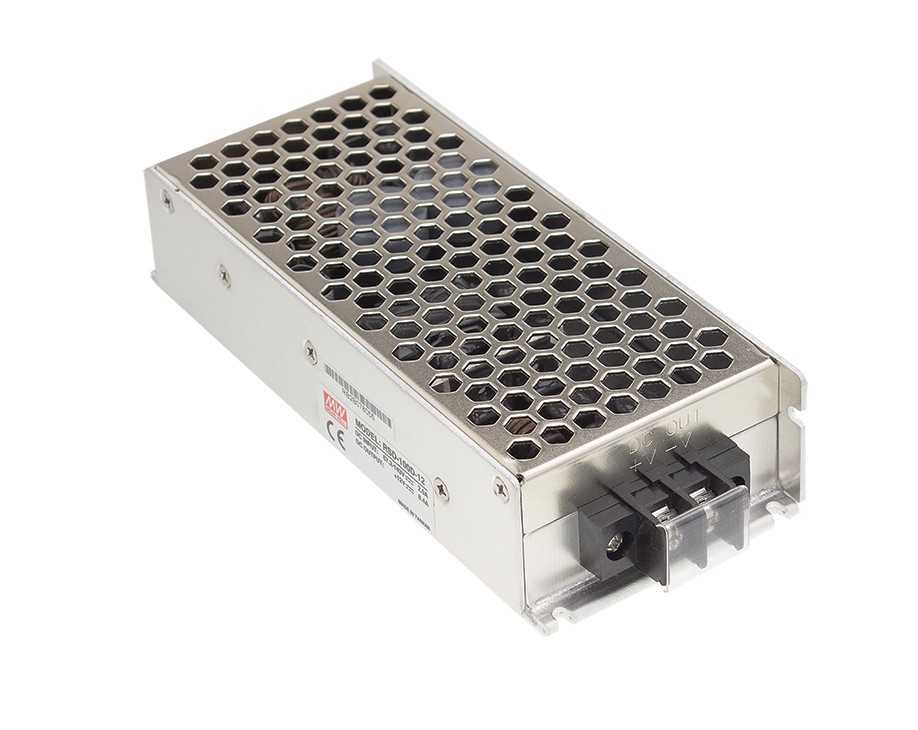

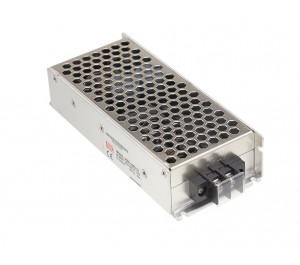

RSD-100D-24 is a 100.8W 24V 4.2A DC-DC converter with 67.2 ~ 143VDC input voltage. The RSD-100D-24 has an LED indicator for power on and built-in constant current limiting circuit for ease of use and increased reliability. With compliance to EN50155 and EN45545-2 railway standard this unit is designed to be used in the rail industry.
Additional Information
| Current (A) | 4A |
|---|---|
| Function | Constant Voltage, DC-DC |
| Features | Compliance to EN50155 and EN45545-2 railway standard 2:1 wide input range Protections: Short circuit / Overload / Over voltage / input reverse polarity 4000VDC I/O isolation Cooling by free air convection Half encapsulated Built-in constant current limiting circuit 1U low profile 36mm All using 105C long life electrolytic capacitors LED indicator for power on 100% full load burn-in test 3 years warrant |
| Voltage (V) | 24V |
| Technology | Switchmode |
| Power (W) | 100W |
Downloads
Product Datasheets
-
RSD-100 Series Datasheet Size: (594.07 KB)
