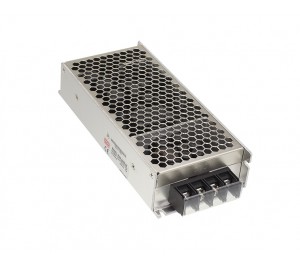

RSD-200B-12 200.4W 12V 16.7A Railway DC-DC Converter

More Views

RSD-200B-12 200.4W 12V 16.7A Railway DC-DC Converter

SKU: RSD-200B-12

Be the first to review this product

£111.97

Availability: Out of stock

Quick Overview

RSD-200B-12 is a 200.4 Watt, 12 Volt, 16.7 Amp, single output railway DC-DC converter with 16.8 ~ 31.2VDC input voltage.



Details

RSD-200B-12 is a 200.4W 12V 16.7A railway DC-DC converter with 16.8 ~ 31.2VDC input voltage. With compliance to EN50155 and EN45545-2 railway standards the RSD-200B-12 is ideal for a variety of railway industry applications

Write Your Own Review

You're reviewing: RSD-200B-12 200.4W 12V 16.7A Railway DC-DC Converter

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Service
Price
Value
Quality

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 16A
Function DC-DC
Features Compliance to EN50155 and EN45545-2 railway standard
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temp / Input reverse polarity
4000VDC I/O isolation
Cooling by free air convection
Half encapsulated
Built-in constant current limiting circuit
1U low profile 40mm
All using 105C long life electrolytic capacitors
LED indicator for power on
100% full load burn-in test
3 years warrant
Voltage (V) 12V
Technology Switchmode
Power (W) 200W

Downloads

Product Datasheets

RSD-200B-12 200.4W 12V 16.7A Railway DC-DC Converter
