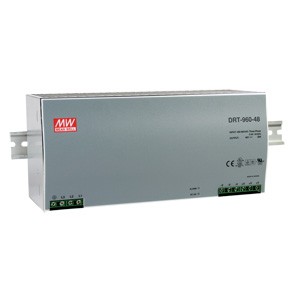

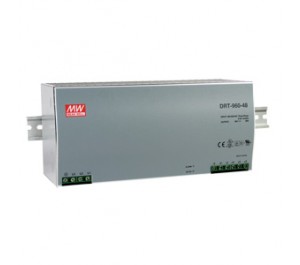

DRT-960-48 Three Phase DIN Rail Power Supply from Power Supplies Online

More Views

DRT-960-48 960W 48V 20A Three Phase DIN Rail Power Supply

SKU: DRT-960-48

Be the first to review this product

  • Buy 10 for £185.21 each and save 28%
£257.23

Availability: In stock

Quick Overview

DRT-960-48 from Mean Well is a 960 Watt, 48 Volt, 20 Amp, three phase 340-550VAC input din rail power supply with built in constant current limiting circuit



Details

DRT-960-48 is a three-phase model that are powered by 340~550VAC 3-phase ~ 4 wire power system. Featuring up to 92% of high efficiency, this series can be cooled by free air convection which significantly increases the reliability and lifetime of the power supply. A built-in constant current limiting circuit means DRT-960-48 possesses the ability to fulfill instant output surge current, which is common under heavy-industrial environments, and the optional parallel function can expand the output current up to 80A (24Vdc) which also increases its installation flexibility.

Write Your Own Review

You're reviewing: DRT-960-48 960W 48V 20A Three Phase DIN Rail Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Service
Price
Value
Quality

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 20A
Function Constant Voltage
Features

DRT-960-48 Features

  • Three-Phase AC 340-550V wide range input
  • High efficiency 91% and low dissipation
  • Short circuit, over load, over voltage & over temperature protections
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test
Applications
  • Factory automation
  • Electro-mechanical industry
Voltage (V) 48V
Type AC-DC
Technology Switchmode
Power (W) 960W
Works with:
  • Factory automation
  • Electro-mechanical industry
DRT-960-48 960W 48V 20A Three Phase DIN Rail Power Supply
£257.23
