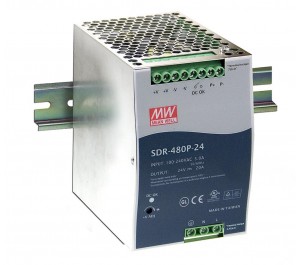

SDR-480P-24 480W 24V 20A Industrial DIN RAIL Power Supply

More Views

SDR-480P-24 480W 24V 20A Industrial DIN RAIL Power Supply

SKU: SDR-480P-24

Be the first to review this product

£149.44

Availability: In stock

Quick Overview

SDR-480P-24 from Mean Well is a 480 Watt, 24 Volt, 20 Amp, single output industrial din rail power supply with 90 ~ 264VAC input voltage.



Details

SDR-480P-24 is a 480W 24V 20A single output industrial power supply with 90 ~ 264VAC input voltage. This Mean Well din rail power supply features current sharing up to 3840W (7+1), built-in active PFC function, built-in constant current limiting circuit, 150% peak load capability and cooling by free air convection. SDR-480P-24 is suitable for applications such as industrial control system, semi-conductor fabrication equipment, factory automation, electro-mechanical appliances, telecommunication devices and marine applications.

Write Your Own Review

You're reviewing: SDR-480P-24 480W 24V 20A Industrial DIN RAIL Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Price
Value
Quality
Service

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 20A
Function Constant Voltage, Power Factor Correction
Features

SDR-480P-24 Features

Current sharing up to 3840W (7 + 1)
High efficiency 94% and low power dissipation
150% peak load capability
Built-in active PFC function, PF > 0.94
Protections: Short circuit / Overload / Over voltage / Over temp
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL508 (Industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
Built-in DC OK relay contact
100% full load burn-in test

Voltage (V) 24V
Technology Switchmode
Power (W) 480W

Downloads

Product Datasheets

SDR-480P-24 480W 24V 20A Industrial DIN RAIL Power Supply
