Details

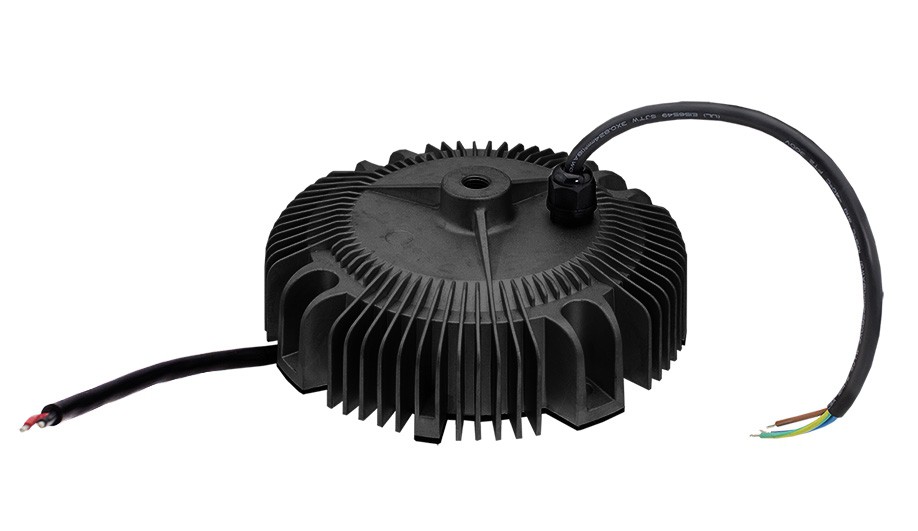

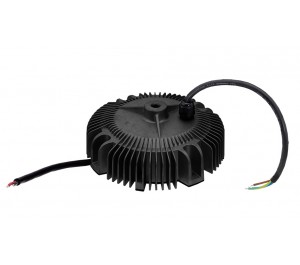

HBG-240-60B is a 240W 60V 4A Single Output LED Lighting Power Supply with 90 ~ 305VAC input voltage. With the Mean Well patented circular metal housing, this LED driver with built-in active PFC function, offers IP67 protection rating which allows the unit to be fitted in both indoor or outdoor applications. Function option: Output constant current level can be adjusted through output cable with 1~1-V, PWM signal and Resistance
Additional Information
| Current (A) | 4A |
|---|---|
| Function | Dimmable |
| Features | Mean Well patented circular metal housing with class I design (Patent no: CN201220314551) Universal AC input / Full range Built-in active PFC function IP67 rating for indoor or outdoor installations Protections: Short circuit / Over current / Over voltage / Over temperature OCP point adjustable through cable or internal potentiometer Output constant current level can be adjusted through output cable with 1~10V, PWM signal and Resistance Typical lifetime > 50,000 hours 5 years warranty |
| Voltage (V) | 60V |
| Technology | Switchmode |
| Power (W) | 240W |
Downloads
Product Datasheets
-
HBG-240 Series Datasheet Size: (1.13 MB)
