Details

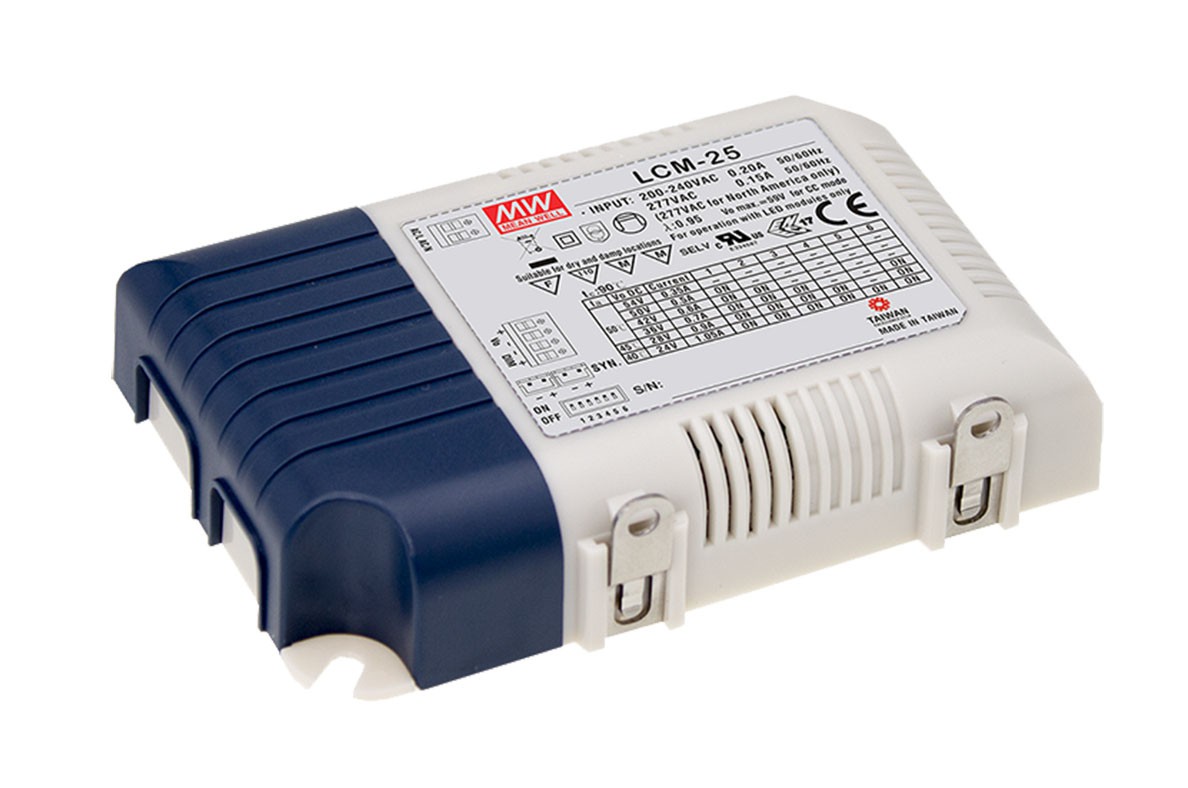

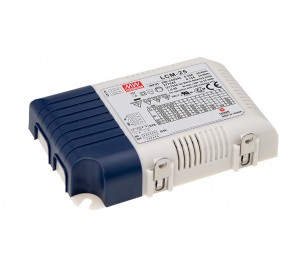

LCM-25 is a 18.9 ~ 25.2W 6 ~ 54V 350 ~ 1050mA Single Output LED Lighting Power Supply with 180 ~ 277VAC input voltage. This Mean Well dimming LED Power Supply is a Class II (no Frame Ground) unit with built-in active PFC function and the output current level is selectable by DIP Switch. The unit has a fully isolated plastic case and IP20 design
Additional Information
| Current (A) | 1050mA |
|---|---|
| Function | Constant Current |
| Features | Output current level selectable by DIP S.W 180 ~ 277VAC input only Built-in active PFC function Protections: Short Circuit / Over Temperature Cooling by free air convection Fully isolated plastic case Class II power unit, no FG Built-in 0 ~ 10Vdc or PWM signal or resistance dimming function IP20 design No load power consumption <0.5W Power supplies synchronization function up to 10 units 3 years warranty |
| Technology | Switchmode |
Downloads
Product Datasheets
-
LCM-25 Series Datasheet Size: (229.38 KB)
