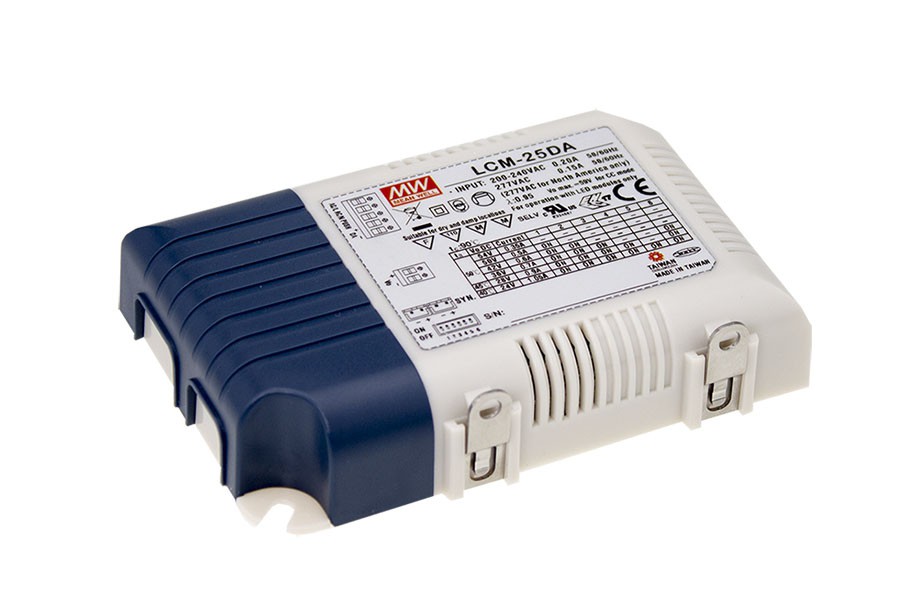

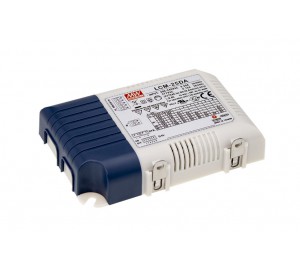

LCM-25DA 18.9 ~ 25.2W 6 ~ 54V 350 ~ 1050mA LED Lighting Power Supply

More Views

LCM-25DA 18.9~25.2W 6~54V 350~1050mA LED Lighting Power Supply

SKU: LCM-25DA

Be the first to review this product

£26.36

Availability: In stock

Quick Overview

LCM-25DA is a 18.9 ~ 25.2W 6 ~ 54V 350 ~ 1050mA Single Output LED Lighting Power Supply with 180 ~ 277VAC input voltage.



Details

LCM-25DA is a 18.9 ~ 25.2W 6 ~ 54V 350 ~ 1050mA Single Output LED Lighting Power Supply with 180 ~ 277VAC input voltage. This Mean Well dimming LED Power Supply is a Class II (no Frame Ground) unit with DALI interface and push dimming function. With built-in active PFC function and the output current level is selectable by DIP Switch. The unit has a fully isolated plastic case and IP20 design

Write Your Own Review

You're reviewing: LCM-25DA 18.9~25.2W 6~54V 350~1050mA LED Lighting Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Price
Value
Quality
Service

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Features Output current level selectable by DIP S.W
180 ~ 277VAC input only
Built-in active PFC function
Protections: Short Circuit / Over Temperature
Cooling by free air convection
Fully isolated plastic case
Class II power unit, no FG
Built-in DALI interface and push dimming function
IP20 design
No load power consumption <0.5W
Power Supplies synchronization function up to 10 units
3 years warranty
Voltage 6 ~ 54V
Technology Switchmode
Power 18.9 ~ 25.2W
Current 350 ~ 1050mA

Downloads

Product Datasheets

LCM-25DA 18.9~25.2W 6~54V 350~1050mA LED Lighting Power Supply
