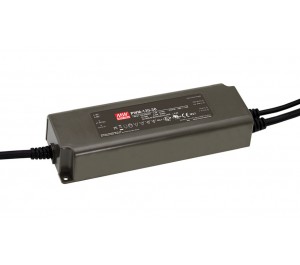

PWM-120-24 120W 24V 5A LED Lighting Power Supply

More Views

PWM-120-24 120W 24V 5A LED Lighting Power Supply

SKU: PWM-120-24

Be the first to review this product

  • Buy 10 for £37.21 each and save 17%
£44.65

Availability: In stock

Quick Overview

PWM-120-24 is a 120 Watt, 24 Volt, 5 Amp, LED driver with three-in-one dimming function (dim to off) that is not load relative



Details

PWM-120-24 from Mean Well is a 120W 24V 5A LED power supply with 90 ~ 305VAC input voltage. The PWM-120-24 features 3 in 1 dimming function with a dimming range of 0~100% which is achieved by varying the duty cycle of the output current. The PWM-120-24 also features built-in active power factor correction, IP67 protection and a 5 year warranty.

Write Your Own Review

You're reviewing: PWM-120-24 120W 24V 5A LED Lighting Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Quality
Service
Price
Value

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 5A
Function Constant Voltage, Dimmable
Features Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
Constant voltage PWM style output
Dimming range:0~100%
Protections: Short Circuit / Overload / Over Voltage / Over Temperature
Class II power unit, no FG
Built-in 3 in 1 dimming function (0 ~ 10Vdc or PWM signal or resistance)
Suitable for dry / damp/ we locations
No load power consumption <0.5W
5 years warranty
Voltage (V) 24V
Technology Switchmode
Power (W) 120W
