Details

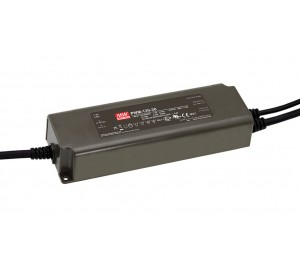

PWM-120-36 is a 122.4W 36V 3.4A LED driver with 90 ~ 305VAC input voltage. This IP67 rated power supply transmits constant voltage PWM style output, has a dimming range from 0 ~ 100% with built-in 3 in 1 dimming function that simplifies the brightness adjustment to achieve energy conservation and a no load power consumption < 0.5W
Additional Information
| Current (A) | 3A |
|---|---|
| Function | Constant Voltage, Dimmable |
| Features | Universal AC input / Full range (up to 305VAC) Built-in active PFC function Constant voltage PWM style output Dimming range:0~100% Protections: Short Circuit / Overload / Over Voltage / Over Temperature Class II power unit, no FG Built-in 3 in 1 dimming function (0 ~ 10Vdc or PWM signal or resistance) Suitable for dry / damp/ we locations No load power consumption <0.5W 5 years warranty |
| Voltage (V) | 36V |
| Technology | Switchmode |
| Power (W) | 120W |
Downloads
Product Datasheets
-
PWM-120 Series Datasheet Size: (176.3 KB)
