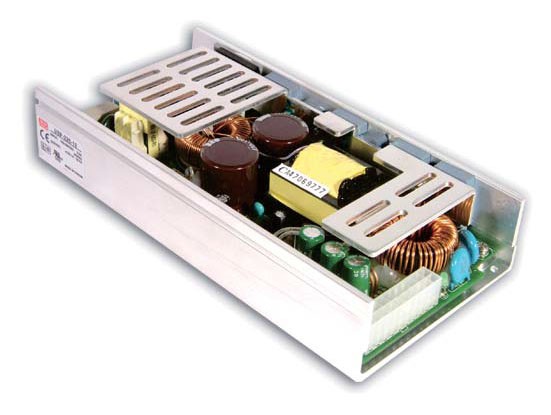

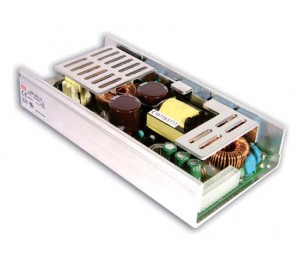

USP-225-5 200W 5V 40A U Channel Power Supply

More Views

USP-225-5 200W 5V 40A U Channel Power Supply

SKU: USP-225-5

Be the first to review this product

£63.45

Availability: In stock

Quick Overview

USP-225-5 is a 200W 5V 40A Single Output U Channel Power Supply with 90 - 264VAC input voltage.


Details

USP-225-5 is a 200W 5V 40A Single Output U Channel Power Supply with universal AC input / Full range, built-in active PFC circuit compliance to EN61000-3-2 and active AC surge current limiting. This power supply has a high power density of 4.7w/in³ and using both cooling by free air convection for 150W and forced air convection for 225W allows a operating temperature of -20 ~ +65°C

Write Your Own Review

You're reviewing: USP-225-5 200W 5V 40A U Channel Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Quality
Service
Price
Value

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 40A
Function Constant Voltage, Power Factor Correction
Features Universal AC input / Full range
Built-in active PFC circuit compliance to EN61000-3-2
Protections: Short Circuit / Overload / Over Voltage/ Over Temperature
Free air convection for 150W and forced air convection for 225W
Active AC surge current limiting
U-bracket low profile: 38mm
3 years warranty
Dimensions: 202 X 101.5 X 38MM
Voltage (V) 5V
Technology Switchmode
Power (W) 200W
