Details

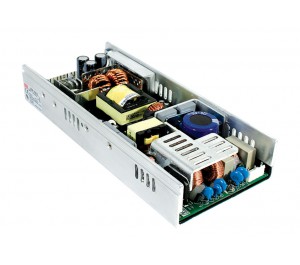

USP-350-12 is a 300W 12V 29.2A U channel power supply with universal AC input, built-in active PFC circuit compliance to EN61000-3-2 and active AC surge current limiting, as well as zero voltage switching technology to reduce power dissipation. This power supply has a high power density of 6.3w/in³ and using both cooling by free air convection for 300W and forced air convection for 350W allows a operating temperature of -10 ~ +65°C
Additional Information
| Current (A) | 30A |
|---|---|
| Function | Constant Voltage, Power Factor Correction |
| Features | Universal AC input / Full range Built-in active PFC circuit compliance to EN61000-3-2 Protections: Short Circuit / Overload / Over Voltage/ Over Temperature Free air convection for 300W and 350W with 23.5CFM forced air Active AC surge current limiting ZVS technology to reduce power dissipation Active AC surge current limiting U-bracket low profile: 38MM 3 years warranty Dimensions: 235.2 X 101.5 X 38MM |
| Voltage (V) | 12V |
| Technology | Switchmode |
| Power (W) | 300W |
Downloads
Product Datasheets
-
USP-350 Series Datasheet Size: (259.36 KB)
-
USP-350 Datasheet Size: (259.55 KB)
