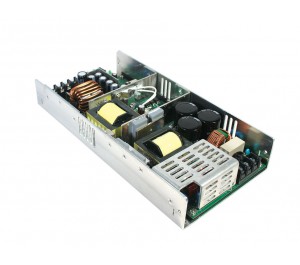

USP-500-12 504W 12V 42A U Channel Power Supply

More Views

USP-500-12 504W 12V 42A U Channel Power Supply

SKU: USP-500-12

Be the first to review this product

£159.98

Availability: In stock

Quick Overview

USP-500-12 is a 504 Watt, 12 Volt, 42 Amp, single output U channel power supply with 90 - 264VAC input voltage.



Details

USP-500-12 is a 504W 12V 42A U channel power supply with full range AC input, built-in active PFC circuit compliance to EN61000-3-2 and active AC input active surge current limiting, as well as current sharing (1+1) for 24V and 48V models (optional). This power supply has a high power density of 6.2w/in³ and using both cooling by free air convection for 300W and forced air convection for 350W allows a operating temperature of -10 ~ +65°C

Write Your Own Review

You're reviewing: USP-500-12 504W 12V 42A U Channel Power Supply

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Price
Value
Quality
Service

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Current (A) 42A
Function Constant Voltage, Power Factor Correction
Features Universal AC input / Full range
Built-in active PFC circuit compliance to EN61000-3-2
Protections: Short Circuit / Overload / Over Voltage/ Over Temperature
Free air convection for 400W and 500W with 23.5 CFM forced air
AC input active surge current limiting
U-bracket low profile: 41mm
Current sharing (1+1) for 24 V and 48V models (Optional)
Built-in remote ON-OFF control
Built-in remote sense function
3 years warranty
Dimensions: 254 X 127 X 41MM
Voltage (V) 12V
Technology Switchmode
Power (W) 500W
