Details

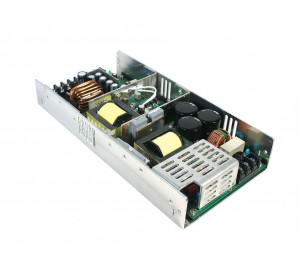

USP-500-15 is a 502.5W 15V 33.5A U channel power supply with universal AC input / Full range, built-in active PFC circuit compliance to EN61000-3-2 and active AC input active surge current limiting, as well as current sharing (1+1) for 24V and 48V models (optional). This power supply has a high power density of 6.2w/in³ and using both cooling by free air convection for 300W and forced air convection for 350W allows a operating temperature of -10 ~ +65°C
Additional Information
| Current (A) | 33A |
|---|---|
| Function | Constant Voltage, Power Factor Correction |
| Features | Universal AC input / Full range Built-in active PFC circuit compliance to EN61000-3-2 Protections: Short Circuit / Overload / Over Voltage/ Over Temperature Free air convection for 400W and 500W with 23.5 CFM forced air AC input active surge current limiting U-bracket low profile: 41mm Current sharing (1+1) for 24 V and48V models (Optional) Built-in remote ON-OFF control Built-in remote sense function 3 years warranty Dimensions: 254 X 127 X 41MM |
| Voltage (V) | 15V |
| Technology | Switchmode |
| Power (W) | 500W |
Downloads
Product Datasheets
-
USP-500 Datasheet Size: (196 KB)
